8” Screen & 8000mAh Battery, Abundant Functions Available
This is an Android 9 rugged tablet with abundant functions . With its powerful Qualcomm CPU, 3rd generation corning gorilla 8 inch corning high-definition screen, 8000 mAh battery and comprehensive data capture options like barcode scanning, NFC and fingerprint recognition, etc. You can find this easy-to-deploy device a valuable helper to increase productivity in retail, logistics, warehousing, identity verification, meter reading, etc.
Get Quote
Get Quote

Add Your Heading Text Here

8” Screen & 8000mAh Battery, Abundant Functions Available
This is an Android 9 rugged tablet with abundant functions . With its powerful Qualcomm CPU, 3rd generation corning gorilla 8 inch corning high-definition screen, 8000 mAh battery and comprehensive data capture options like barcode scanning, NFC and fingerprint recognition, etc. You can find this easy-to-deploy device a valuable helper to increase productivity in retail, logistics, warehousing, identity verification, meter reading, etc.
Get Quote

8'' Screen & Large Battery, Abundant Functions Available

Features
Android 9RAM+ROM: 3+32GB/4+64GB (optional)
8-inch 1920×1200/1280×800 IPS Display8000mAh Powerful Battery
IP65 Sealing
Functions
Fingerprint ScanningBarcode Scanning (Optional)
NFC

Specifications

Physical Characteristics
Dimensions 250.8 x 152 x 15 mm/ 9.87 x 5.98 x 0.59 in.(for standard version)
Weight 700 g / 24.7 oz. (for standard version)
Display 8” IPS LTPS 1920 x 1200 / IPS LTPS 1280 x 800
Touch Panel Corning Gorilla Glass 3, multi-touch panel, gloves and w et hands supported
Power Main battery: Li-ion, rechargeable, 8000mAh Standby: over 500 hours Continuous use: over 10 hours (depending on user environment) Charging time: 5-7 hours (with standard AC adaptor and USB cable)
Notification Sound, LED indicator
Expansion Slot 1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots
Interfaces USB 2.0 Type-C, OTG
Audio 1 microphone；1 speaker；receiver
Keypad 1 front key, 1 volume key, 1 power key
Sensors Accelerometer sensor, light sensor, proximity sensor; geomagnetic sensor, gyroscope
Communication
WLAN Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc.
WWAN (Europe, Asia) 2G: 850/900/1800/1900MHz, GPRS, EDGE 3G: CDMA EVDO: BC0 TD-SCDMA: B34/B39 WCDMA: B1/B5/B8 4G: TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B3/B5/B7/B8/B20
WWAN (America) 3G: WCDMA: B2/B4/B5 4G: FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B
WWAN (Others) Depending on the country’s ISP
Bluetooth Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
Vo-LTE Support Vo-LTE HD video voice call
GNSS GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
Developing Environment
Operating System Android 9; GMS, Android Enterprise, Zero-Touch,FOTA, Soti MobiControl, SafeUEM supported
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Performance
CPU SDM450 1.8GHz Octa-core
RAM+ROM 3GB + 32GB 4GB + 64GB (optional)
Expansion Supports up to 128GB Micro SD card
User Environment
Operating Temp. -4 °F to 122 °F / -20 °C to 50 °C
Storage Temp. -40 °F to 158 °F / -40 °C to 70 °C
Humidity 5% RH – 95% RH non condensing
Drop Specification Multiple 1.5 m / 4.9 ft. drops to concrete across the operating temperature range
Tumble Specification 500 x 0.5 m / 1.64 ft. falls at room temperature
Sealing IP65 Complete protection against contact (dust tight). Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful eddects.
ESD ±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
Scan engine Zebra SE4710 (standard), Zebra SE4850 (optional)
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch, Postal (KIX), etc.
Camera
Front Camera 5 MP
Rear Camera 13 MP Autofocus with flash
NFC
Frequency 13.56 MHz

Support & Downloads

Documents & Manuals

P80 Optical Fingerprint Data Sheet

2022-03-21

P80 User Manual

2018-11-20

Videos

Company Introduction

2022-05-17

Factory Introduction

2022-05-17

Certificates

ISO9001

2018-11-17

ISO14001

2018-11-17

ISO18001

2018-11-17

P80-RoHS

2018-12-12

P80-CCC

2018-12-12

P80-IP65

2019-01-04

P80-1.5m Drop Test Report

2019-01-04

P80-IMEI TAC

2018-11-17

]]> P80 Industrial Tablet (Android 9) https://chainwaysa.co.za/products/p80-industrial-tablet-android-9/ Wed, 18 May 2022 12:56:36 +0000 https://www.chainwaysa.co.za/?post_type=products&p=1647

Add Your Heading Text Here

8” Screen & 8000mAh Battery, Abundant Functions Available
Chainway P80 is an Android 9 rugged tablet with abundant functions. With Qualcomm Octa-Core CPU, 8-inch FHD screen, 8000 mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, HF RFID/NFC, fingerprint recognition, etc. The rugged tablet can meet requirements in industrial fulfillments, such as retail, logistics, power, warehousing, transportation and so forth.
Get Quote
Get Quote

Add Your Heading Text Here

8” Screen & 8000mAh Battery, Abundant Functions Available
Chainway P80 is an Android 9 rugged tablet with abundant functions. With Qualcomm Octa-Core CPU, 8-inch FHD screen, 8000 mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, HF RFID/NFC, fingerprint recognition, etc. The rugged tablet can meet requirements in industrial fulfillments, such as retail, logistics, power, warehousing, transportation and so forth.
Get Quote

8'' Screen & 8000mAh Battery, Abundant Functions Available

Features
Qualcomm Octa-core 1.8 GHzAndroid 9.0
8-inch 1920×1200/1280×800 IPS Display8000mAh Powerful Battery
Functions
Barcode Scanning (Optional)Fingerprint Scanning (Optional)
NFCUHF RFID (Optional)
PSAM (Optional)Dual-band WIFI

Specifications

Physical Characteristics
Dimensions 250.8 mm x 152.0 mm x 15.0 mm / 9.87 x 5.98 x 0.59 in. ( for standard version )
Weight 700 g / 24.7 oz. ( for standard version )
Display 8” IPS LTPS 1920 x 1200 / IPS LTPS 1280 x 800
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power Main battery: Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 10 hours ( depending on user environment ) Charging time: 5-7 hours ( with standard AC adaptor and USB cable )
Notification Sound, LED indicator
Expansion Slot 1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots
Interfaces USB 2.0 Type-C, OTG
Audio 1 microphone；1 speaker；receiver
Keypad 1 front key, 1 volume key, 1 power key, direction key (optional)
Sensors Accelerometer sensor, light sensor, proximity sensor; geomagnetic sensor, gyroscope
Communication
WLAN Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc.
WWAN (Europe, Asia) 2G: 850/900/1800/1900MHz, GPRS, EDGE 3G: CDMA EVDO: BC0 TD-SCDMA: B34/B39 WCDMA: B1/B5/B8 4G: TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B3/B5/B7/B8/B20
WWAN (America) 3G: WCDMA: B2/B4/B5 4G: FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B
WWAN (Others) Depending on the country’s ISP
Bluetooth Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
Vo-LTE Support Vo-LTE HD video voice call
GNSS GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
Note *P80 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
Developing Environment
Operating System Android 9; GMS, 90-day security updates, Android Enterprise, Zero-Touch,FOTA, Soti MobiControl, SafeUEM supported
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Performance
CPU Qualcomm 1.8 GHz Octa-core
RAM+ROM 3 GB + 32 GB 4 GB + 64 GB (optional)
Expansion Supports up to 128 GB Micro SD card
User Environment
Operating Temp. -4 °F to 122 °F / -20 °C to 50 °C
Storage Temp. -40 °F to 158 °F / -40 °C to 70 °C
Humidity 5% RH – 95% RH non condensing
Drop Specification Multiple 1.5 m / 4.9 ft. drops ( at least 20 times ) to the concrete across the operating temperature range
Tumble Specification 500 x 0.5 m / 1.64 ft. falls at room temperature
Sealing IP65 per IEC sealing specifications
ESD ±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
Scan engine Zebra SE4710 ( standard ) , Zebra SE4850 ( optional )
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note * This function is optional
UHF1
Engine CM710-1 module based on Impinj E710 CM510-1 module based on Impinj E510 CM2000-1 module based on Impinj Indy R2000
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Circular polarization; UHF with pistol grip, 4dBi
Power 1W ( 30dBm, +5dBm to +30dBm adjustable ) 2W Optional ( 33dBm, for Latin America, etc. )
R/W range Up to 15 m (open outdoors, Impinj MR6 tag)
Fastest Read Rate 900+ tags/sec
Note * UHF with pistol grip, optional * Ranges and rates depend on tags and environment * This function is optional
UHF2
Engine CM710-1 module based on Impinj E710 CM510-1 module based on Impinj E510 CM2000-1 module based on Impinj Indy R2000
Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna Circular polarization; default UHF, 3dBi
Power 1W ( 30dBm, +5dBm to +30dBm adjustable ) 2W Optional ( 33dBm, for Latin America, etc. )
R/W range Up to 10 m (open outdoors, Impinj MR6 tag)
Fastest Read Rate 900+ tags/sec
Note * Default UHF, optional * Ranges and rates depend on tags and environment * This function is optional
UHF3
Engine CM310-1 module based on Impinj E310 CM500-1 module based on Impinj Indy R500
Frequency 865-868 MHz / 920-925 MHz
Protocol EPC C1 GEN2 / ISO18000-6C
Antenna 0 dBi
Power 1W (30 dBm, +5 dBm to +30 dBm adjustable)
R/W range 30 cm
Note *Built-in UHF, optional * Ranges and rates depend on tags and environment.
InfraRed
Wavelength 940 nm
Frequency 38 kHz
Range > 4 m
Protocol DLT_645-2007, DLT_645-1997
Note * This function currently only has an interface reserved.
Fingerprint 1
Sensor TCS1/TCS2 Capacitive
Sensing Area (mm) 12.8 × 18.0; 10.4 x 14.4
Resolution (dpi) 508 dpi, 8-bit greylevel
Certifications FIPS 201, STQC
Format Extraction ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection Support by SDK
Security AES, DES key encryption of the host communication channel
Note * This function is optional
Fingerprint 2
Sensor Optical Morpho CBM-E3
Sensing Area (mm) 14 x 22
Resolution (dpi) 500 dpi, 256 greylevel
Certifications FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC
Format Extraction ISO 19794-2/4, WSQ, ANSI 378, etc.
Fake Finger Detection Latex, GeLatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Pape
Security FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
Note * This function is optional
Camera
Camera 13 MP Autofocus with flash
Front Camera 5 MP
NFC
Frequency 13.56 MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card ( S50, S70 ), CPU card, NFC tags, etc.
Range 2-4 cm
PSAM
Protocol ISO7816
Slots 2 PSAM card slots
Note * This function is optional
HF RFID
Frequency 13.56 MHz
Note * This function is optional;
Note2 * HF RFID is alternative to NFC

Support & Downloads

Documents & Manuals

P80 Data Sheet

2022-01-13

P80 Accessories Guide

2020-06-25

P80 User Manual

2018-11-20

Videos

Company Introduction

2022-05-17

Factory Introduction

2022-05-17

Certificates

ISO9001

2018-11-17

ISO14001

2018-11-17

ISO18001

2018-11-17

P80-RoHS

2018-12-12

P80-IP65

2019-01-04

P80-1.5m Drop Test Report

2019-01-04

P80-IMEI TAC

2018-11-17

P80-CCC

2018-11-26

Accessories

Adapter (CN)

PWR-P80-5V2A-CN

Adapter (EU)

PWR-P80-5V2A-EU

Adapter (UK)

PWR-P80-5V2A-UK

Adapter (US)

PWR-P80-5V2A-US

USB Cable

DC-BK-TypeC

Sim Tray Ejector

SIM-TRAY-EJECTOR

Hand Strap

SG-P80-HDSTP

Rugged Rubber Boot (Optional)

RB-P80-RR

Holder (Optional)

MOT-P80

Pistol Grip (Optional)

TRG-P80-PG

Charging Cradle for Device (Optional)

CRD-P80-RBC

Insert for P80 Cradle Cup (Optional)

CRD-P80-INS

]]> C71 Optical Fingerprint Scanner (Android 11/8.1) https://chainwaysa.co.za/products/c71-optical-fingerprint-scanner-android-11-8-1/ Wed, 18 May 2022 12:54:39 +0000 https://www.chainwaysa.co.za/?post_type=products&p=1755

Add Your Heading Text Here

Accurate Fingerprint Reading, Reliable Identity Verification
Chainway C71 is an Android rugged mobile computer, built with optical fingerprint sensor CBM-E3. It is FIPS 201 compliant, and enables secure data encryption and fake finger detection. With its powerful Octa-core processor and wireless connections such as 4G, Bluetooth and Wi-Fi, fingerprint scanner, barcoding and NFC, you can find this easy-to-deploy device an exceptionally valuable helper to increase working efficiency and productivity. C71 with abundant functions can best satisfy your different industrial needs.
Get Quote
Get Quote

Add Your Heading Text Here

Accurate Fingerprint Reading, Reliable Identity Verification
Chainway C71 is an Android rugged mobile computer, built with optical fingerprint sensor CBM-E3. It is FIPS 201 compliant, and enables secure data encryption and fake finger detection. With its powerful Octa-core processor and wireless connections such as 4G, Bluetooth and Wi-Fi, fingerprint scanner, barcoding and NFC, you can find this easy-to-deploy device an exceptionally valuable helper to increase working efficiency and productivity. C71 with abundant functions can best satisfy your different industrial needs.
Get Quote

Accurate Fingerprint Reading, Reliable Identity Verification

Features
Android 11/8.1Cortex-A53 Octa-core 2.3/2.5 GHz
5.2” IPS 1080P Screen5000mAh Powerful Battery
1.8m Drop ProofIP65 Sealing
4G/WiFi/Bluetooth
Functions
Fingerprint ScanningNFC
13MP Autofocus CameraBarcode Scanning
Accurate GPS

Specifications

Physical Characteristics
Dimensions 164.2*78.8*17.5mm/6.46*3.10*0.69in; ( the thickest: 31.5mm/1.24in)
Weight ＜314g/11.08oz
Display 5.2” IPS LTPS 1920x1080P
Touch Panel Corning Gorilla Glass 3, multi-touch panel, gloves and wet hands supported
Power Main battery: Li-ion, rechargeable, 5000mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)
Notification Sound, LED indicator, vibrator
Expansion Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces USB 2.0 Type-C, OTG, Type-C headphones supported
Audio 2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors Light sensor, proximity sensor, gravity sensor
Communication
WLANIEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN

Android 8.1:
WWAN (China):
2G: 900/1800MHz
3G: WCDMA: B1,B8
CDMA2000 EVDO: BC0
TD-SCDMA: B34,B39
4G: B1,B3,B5,B8,B34,B38,B39,B40,B41

WWAN (Europe):

2G: 850/900/1800/1900 MHz
3G: B1/B2/B4/B5/B8
4G: B1/B3/B5/B7/B8/B20/B40

WWAN(America):
2G: 850/900/1800/1900 MHz
3G: B1/B2/B4/B5/B8
4G: B2/B4/B7/B12/B17/B25/B66

Android 11.0:
2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA：B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA：A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
B28B/B34/B38/B39/B40/B41

WWAN (Others)Depending on the country’s ISP
BluetoothAndroid 8.1：Bluetooth v2.1+EDR,3.0+HS,v4.1+HS
Android 11.0：Bluetooth 5.0
GNSSGPS/AGPS, GLONASS, BeiDou; internal antenna
Developing Environment
Operating System Android 8.1; GMS, FOTA, Soti MobiControl, SafeUEM supported Android 11.0; GMS, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
SDK Chainway Development Kit (based on Morpho SDK)
Language Java
Tool Eclipse / Android Studio
Performance
CPU Cortex-A53 2.5 / 2.3 GHz Octa-core
RAM+ROM 3GB + 32GB 4GB + 64GB (optional)
Expansion Supports up to 128 GB Micro SD card
User Environment
Operating Temp. 4°F to 122°F / -20°C to 50°C
Storage Temp. -40°F to 158°F / -40°C to 70°C
Humidity 5%RH – 95%RH non condensing
Drop Specification Multiple 1.8 m / 5.9 ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification 1000 x 0.5 m / 1.64 ft falls at room temperature
Sealing IP65 dependent
ESD ±15 KV air discharge, ±6 KV conductive discharge
Barcode Scanning
1D Linear Scanner Zebra: SE965; Honeywell: N4313
2D Imager Scanner Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Camera
Camera 13MP autofocus rear camera with flash
NFC
Frequency 13.56 MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
Chips M1 card (S50, S70), CPU card, NFC tags, etc
Range 2-4 cm

Support & Downloads

Documents & Manuals

C71 Optical Fingerprint Data Sheet

2022-01-13

C7X Accessories Guide

2021-09-09

C71 User Manual

2018-11-20

Videos

Company Introduction

2022-05-17

Factory Introduction

2022-05-17

Certificates

ISO9001

2017-07-10

ISO14001

2017-07-10

C71-IMEI TAC

2017-09-28

C71-1.8m Drop Test Report

2017-09-05

ISO18001

2018-11-21

Accessories

Adapter (CN)

PWR-C71-5V2A-CN

Adapter (EU)

PWR-C71-5V2A-EU

Adapter (UK)

PWR-C71-5V2A-UK

Adapter (US)

PWR-C71-5V2A-US

USB Cable

DC-C7X-TypeC

Lanyard

SG-C71-LYD-GY

Sim Tray Ejector

SIM-TRAY-EJECTOR

Cradle（Optional）

GRD-C71-SCC

Screen Protector (Optional)

SP-C7X

Holster (Optional)

SG-C7X-CPH

Rugged Rubber Boot (Optional)

RB-C71-RR / RB-C71-RRP

Charging Cradle (Optional)

CRD-C71-RBC/CRD-C71-RBCE

Holster (Optional)

SG-C7X-CPH-OPEN

4-slots Charging Cradle Set (Optional)

CRD-C71-RBCx4 / CRD-C71-RBCEx4

]]> C71 Biometrics Reader (Android 11/8.1) https://chainwaysa.co.za/products/c71-biometrics-reader-android-11-8-1/ Wed, 18 May 2022 12:53:28 +0000 https://www.chainwaysa.co.za/?post_type=products&p=1753

Add Your Heading Text Here

Accurate Fingerprint Reading, Iris Scanning and Facial Recognition
Chainway C71 is specially designed for identity verification. Supporting optional fingerprint reading, iris scanning and facial recognition, it can accurately collect and verify biometric data of users with secure data encryption. The newly-upgrade of Octa-Core CPU brings the overall performance improvement that enables high-speed and stable possessing. Besides, it supports optional barcode scanning, NFC, etc. The handheld computer is ideal for population census, national election, security and protection, national defense, etc.
Get Quote
Get Quote

Add Your Heading Text Here

Accurate Fingerprint Reading, Iris Scanning and Facial Recognition

Chainway C71 is specially designed for identity verification. Supporting optional fingerprint reading, iris scanning and facial recognition, it can accurately collect and verify biometric data of users with secure data encryption. The newly-upgrade of Octa-Core CPU brings the overall performance improvement that enables high-speed and stable possessing. Besides, it supports optional barcode scanning, NFC, etc. The handheld computer is ideal for population census, national election, security and protection, national defense, etc.
Get Quote

Accurate Fingerprint Reading, Iris Scanning and Facial Recognition

Features
Android 11/8.1Cortex-A53 Octa-core 2.3/2.5 GHz
RAM+ROM: 3+32GB/4+64GB (optional)5.2” IPS 1080P Screen
5000mAh Powerful Battery1.8m Drop Proof
IP65 Sealing
Functions
Barcode Scanning (Optional)Fingerprint/Face Recognition (Optional)
NFC13MP Autofocus Camera

Specifications

Physical Characteristics
Dimensions 164.2 x 78.8 x 17.5 mm / 6.46 x 3.10 x 0.69 in. (the thickest: 24.5mm/0.96in)
Weight ＜314 g / 11.08 oz.
Display 5.2” IPS LTPS 1920 x 1080
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power Main battery: Li-ion, rechargeable, 5000 mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)
Notification Sound, LED indicator, vibrator
Expansion Slot 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces USB 2.0 Type-C, OTG, TypeC headphones supported
Audio 2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors Light sensor, proximity sensor, gravity sensor
Communication
WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN Android 8.1: WWAN (China): 2G: 900/1800MHz 3G: WCDMA: B1,B8 CDMA2000 EVDO: BC0 TD-SCDMA: B34,B39 4G: B1,B3,B5,B8,B34,B38,B39,B40,B41 WWAN (Europe): 2G: 850/900/1800/1900 MHz 3G: B1/B2/B4/B5/B8 4G: B1/B3/B5/B7/B8/B20/B40 WWAN(America): 2G: 850/900/1800/1900 MHz 3G: B1/B2/B4/B5/B8 4G: B2/B4/B7/B12/B17/B25/B66 Android 11: 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A B28B/B34/B38/B39/B40/B41
WWAN (Others) Depending on the country’s ISP
Bluetooth Android 8.1: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS Android 11: Bluetooth 5.0
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
Developing Environment
Operating System Android 8.1; GMS, FOTA, Soti MobiControl, SafeUEM supported Android 11; GMS, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
SDK Chainway Software Development Kit (capacitive fingerprint based on crossmatch SDK)
Language Java
Tool Eclipse / Android Studio
Performance
CPU Cortex-A53 2.5 / 2.3 GHz Octa-core
RAM+ROM 3GB + 32GB 4GB + 64GB (optional)
Expansion Supports up to 128 GB Micro SD card
User Environment
Operating Temp. -4 °F to 122 °F / -20 °C to 50 °C
Storage Temp. -40 °F to 158 °F / -40 °C to 70 °C
Humidity 5% RH – 95% RH non condensing
Drop Specification Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing IP65 / IP67 per IEC sealing specifications
ESD ±15 KV air discharge, ±6 KV conductive discharge
Barcode Scanning
1D Linear Scanner Zebra: SE965; Honeywell: N4313
2D Imager Scanner Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note *This function is optional
Fingerprint 1
Sensor TCS1/TCS2 Capacitive
Sensing Area (mm) 12.8 × 18.0 ; 10.4 x 14.4
Resolution (dpi) 508 dpi, 8-bit greylevel
Certifications FIPS 201, STQC
Format Extraction ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection Support by SDK
Security AES, DES key encryption of the host communication channel
Fingerprint 2
Sensor Optical Morpho CBM-E3
Sensing Area (mm) 14 x 22
Resolution (dpi) 500 dpi, 256 greylevel
Certifications FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 compliant, STQC
Format Extraction ISO 19794-2/4, WSQ, ANSI 378, etc
Fake Finger Detection Latex, GeLatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Paper
Security FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
Camera
Front Camera 5 MP camera
Rear Camera 13 MP autofocus rear camera with flash
Note *Front Camera function is optional
NFC
Frequency13.56 MHz
ProtocolISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
ChipsM1 card (S50, S70), CPU card, NFC tags, etc.
Range2-4 cm
Iris Recognition
Rate < 150 ms
Range 20-40 cm
FAR 1/10000000
Note Protocol：ISO/IEC 19794-6，GB/T 20979-2007
Note2 *This function is optional *Iris is alternative to front camera

Support & Downloads

Documents & Manuals

C71 Fingerprint Data Sheet

2022-01-13

C7X Accessories Guide

2021-09-09

C71 User Manual

2018-11-20

Videos

Company Introduction

2022-05-17

Factory Introduction

2022-05-17

Certificates

ISO9001

2018-11-15

ISO14001

2018-11-15

ISO18001

2018-11-15

C71-IMEI TAC

2018-11-15

C71-1.8m Drop Test Report

2018-11-15

Accessories

Adapter (CN)

PWR-C71-5V2A-CN

Adapter (EU)

PWR-C71-5V2A-EU

Adapter (UK)

PWR-C71-5V2A-UK

Adapter (US)

PWR-C71-5V2A-US

USB Cable

DC-C71-TypeC

Lanyard

SG-C71-LYD-GY

Sim Tray Ejector

SIM-TRAY-EJECTOR

Screen Protector (Optional)

SP-C7X

Charging Cradle (Optional)

CRD-C71-SCC

Charging Cradle(Optional)

CRD-C71-DOC

Holster (Optional)

SG-C71-CPH

Rugged Rubber Boot (Optional)

RB-C71-RR / RB-C71-RRP

Charging Cradle (Optional)

CRD-C71-RBC/CRD-C71-RBCE

4-slots Charging Cradle Set (Optional)

CRD-C71-RBCx4 / CRD-C71-RBCEx4

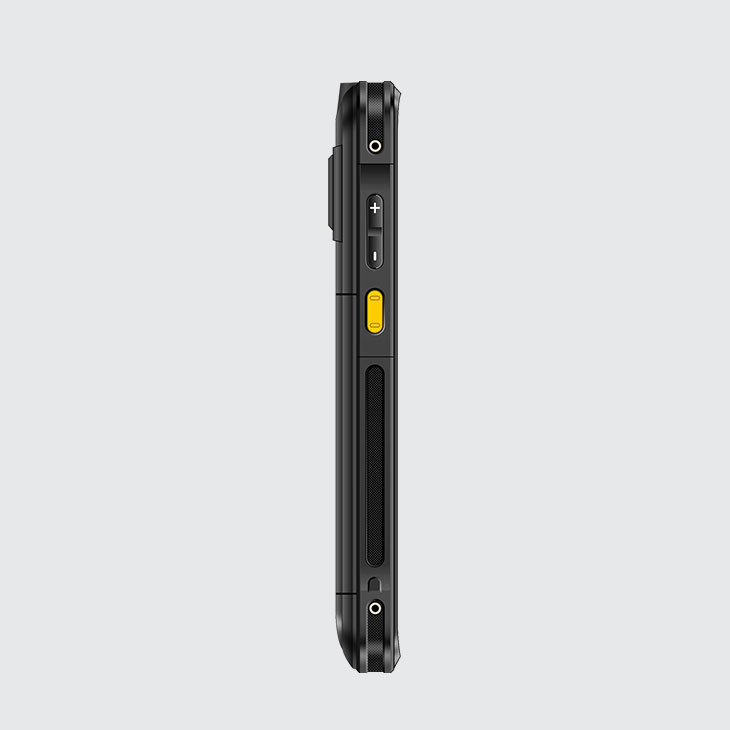

]]> C66 Fingerprint Scanner (Android 11) https://chainwaysa.co.za/products/c66-fingerprint-scanner-android-11/ Wed, 18 May 2022 12:52:49 +0000 https://www.chainwaysa.co.za/?post_type=products&p=1746

Add Your Heading Text Here

More Powerful, More Extensible, More Advanced in Every Way

Chainway C66 is a biometric handheld terminal. It is based on the Android 11 and equipped with Qualcomm Octa-core CPU, 5.5″ high-definition touch screen, large capacity detachable battery, supports fast charging, and various accessories. Additionally, it has integrated high-performance biometric functions to support fingerprint identification, and face recognition applications with high security and flexibility. Also, it can be equipped with barcode scanning, NFC, and other functions, which are widely used in census, national election, security, national defense,etc.
Get Quote
Get Quote

Add Your Heading Text Here

More Powerful, More Extensible, More Advanced in Every Way

Chainway C66 is a biometric handheld terminal. It is based on the Android 11 and equipped with Qualcomm Octa-core CPU, 5.5″ high-definition touch screen, large capacity detachable battery, supports fast charging, and various accessories. Additionally, it has integrated high-performance biometric functions to support fingerprint identification, and face recognition applications with high security and flexibility. Also, it can be equipped with barcode scanning, NFC, and other functions, which are widely used in census, national election, security, national defense,etc.
Get Quote

More Powerful, More Extensible, More Advanced in Every Way

Features
Android 11Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz
5.5″ IPS DisplayRAM+ROM: 3+32GB/4+64GB (optional)
QC3.0 Quick Charge and RTC
Functions
Fingerprint RecognitionBarcode Scanning (Optional)
NFC13MP Autofocus Camera
GPS, BeiDou，GLONASS

Specifications

Physical Characteristics
Dimensions 160.0 x 76.0 x 17.0 mm / 6.3 x 2.99 x 0.67 in.
Weight 297 g / 10.47 oz. (device with battery)
Display 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
Battery Removable main battery (normal version:4420 mAh ; Android 11.0 with fingerprint / built-in UHF / volume measurement version: 5200mAh ) 5200 mAh optional pistol battery, support QC3.0 and RTC Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Notification Sound, LED indicator, vibrator
Interfaces USB Type-C, USB 3.1, OTG, extended thimble
Card slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Audio 2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad 1 power key, 2 scan keys, 2 volume keys
Sensors Accelerometer sensor, light sensor, proximity sensor, gravity sensor
Communication
WLANSupport 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PA
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc
WWAN (Europe, Asia)2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0
WCDMA: 850/900/1900/2100MHz
TD-SCDMA: A/F(B34/B39)
4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
WWAN (America)2G: 850/900/1800/1900 MHz
3G: 850/900/1900/2100 MHz
4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
BluetoothBluetooth 5.1
Vo-LTESupport Vo-LTE HD video voice call
GNSSGPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Developing Environment
Operating System Android 11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio
Performance
CPU Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz
RAM+ROM 3 GB + 32 GB / 4 GB + 64 GB
Expansion Supports up to 128 GB Micro SD card
User Environment
Operating Temp. -4oF to 122oF / -20 ℃ to +50 ℃
Storage Temp. -40oF to 158oF / -40 ℃ to +70 ℃
Humidity 5% RH – 95% RH non condensing
Drop Specification Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing IP65 per IEC sealing specifications
ESD ±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
2D Scanner Zebra: SE4710/SE2100; Honeywell: N6603; E3200; IA166S
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note *This function is optional
Fingerprint
Sensor TCS1
Sensing Area (mm) 12.8 × 18.0 ; 10.4 x 14.4
Resolution (dpi) 508 dpi, 8-bit greylevel
Certifications FIPS 201, STQC
Format Extraction ISO 19794, WSQ, ANSI 378, JPEG2000
Fake Finger Detection Support by SDK
Security AES, DES key encryption of the host communication channel
Camera
CameraRear 13MP Autofocus with flash
NFC
Frequency 13.56 MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc.
Range 2-4 cm
Optional accessories
Accessories Wrist Strap; Rubber Bumper; Charging Cradle

Support & Downloads

Documents & Manuals

C66 Data Sheet

2022-01-13

C66 Accessories Guide

2021-12-14

C66 User Manual

2021-12-14

Videos

C66 Mobile Computer Introduction

2022-05-17

Company Introduction

2022-05-17

Factory Introduction

2022-05-17

]]>
