C70 Mobile Computer (Android 11/8.1)

Ultra Thin & Light, Rugged Enough to Use Anywhere

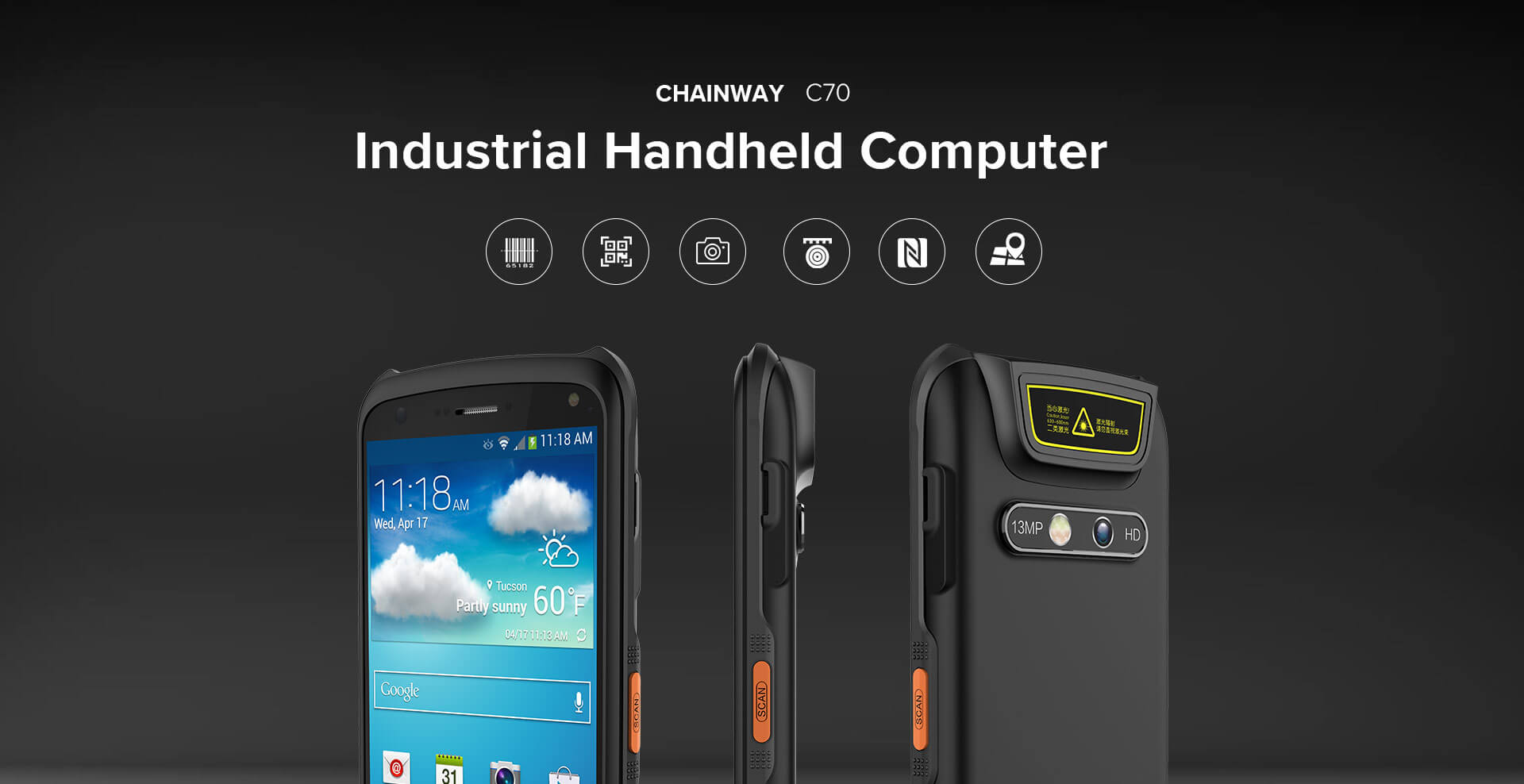

Chainway C70 is an Android-based handheld computer with 5.2-inch high-definition screen. It is lightweight and comfortable in hand, and features optional barcode scanning, NFC, iris recognition, and other functions. This rugged computer can be applied to industries like retail, logistics, warehouse management, manufacture and so forth.

C70 Mobile Computer (Android 11/8.1)

Ultra Thin & Light, Rugged Enough to Use Anywhere

Features

Android 11/8.1	5.2” IPS 1080P Screen
4000mAh Powerful Battery	1.8m Drop Proof
IP65/IP67

Functions

Barcode Scanning (Optional)	NFC
13MP Autofocus Camera	Accurate GPS
Dual-band WIFI

Specifications

Physical Characteristics

Dimensions	163.8 x 79.2 x 13.8 mm / 6.45 x 3.12 x 0.54 in.
Weight	< 242 g / 8.5 oz.
Display	5.2” IPS LTPS 1920 x 1080
Touch Panel	Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power	Main battery: Li-ion, rechargeable, 4000mAh Standby: over 300 hours Continuous use: over 12 hours (depending on user environment) Charging time: 2-3 hours (with standard adaptor and USB cable)
Notification	Sound, LED indicator, vibrator
Expansion Slot	1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces	USB2.0 Type-C, OTG
Audio	2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad	4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key
Sensors	Light sensor, proximity sensor, gravity sensor

Communication

WLAN	IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN	Android 8.1: WWAN (China): 2G: 900/1800MHz 3G: WCDMA: B1,B8 CDMA2000 EVDO: BC0 TD-SCDMA: B34,B39 4G: B1,B3,B5,B8,B34,B38,B39,B40,B41 WWAN (Europe): 2G: 850/900/1800/1900 MHz 3G: B1/B2/B4/B5/B8 4G: B1/B3/B5/B7/B8/B20/B40 WWAN(America): 2G: 850/900/1800/1900 MHz 3G: B1/B2/B4/B5/B8 4G: B2/B4/B7/B12/B17/B25/B66 Android 11.0: 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A B28B/B34/B38/B39/B40/B41
WWAN (Others)	Depending on the country’s ISP
Bluetooth	Android 8.1: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS Android 11.0: Bluetooth 5.0
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna
Note	*C70 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

Developing Environment

Operating System	Android 8.1; SafeUEM supported Android 11.0; SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
SDK	Chainway Software Development Kit
Language	Java
Tool	Eclipse / Android Studio

Performance

CPU	Cortex-A53 2.5 / 2.3 GHz Octa-core
RAM+ROM	3 GB + 32 GB / 4 GB + 64 GB
Expansion	Supports up to 128 GB Micro SD card

User Environment

Operating Temp.	-4°F to 122°F / -20°C to 50°C
Storage Temp.	-40°F to 158°F / -40°C to 70°C
Humidity	5%RH – 95%RH non condensing
Drop Specification	Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification	1000 x 0.5m/1.64ft falls at room temperature
Sealing	IP65 / IP67 per IEC sealing specifications
ESD	±15KV air discharge, ±6KV conductive discharge

Barcode Scanning

2D Imager Scanner	Zebra SE4710 / Honeywell N6603
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note	*This function is optional

Camera

13MP autofocus rear camera with flash, optional 5MP front camera

NFC

Frequency	13.56 MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips	M1 card (S50, S70), CPU card, NFC tags, etc.
Range	2-4cm

Iris Recognition

Rate	< 150 ms
Range	20-40 cm
FAR	1/10000000
Note	Protocol：ISO/IEC 19794-6，GB/T 20979-2007
Note2	This function is optional Iris is alternative to front camera
