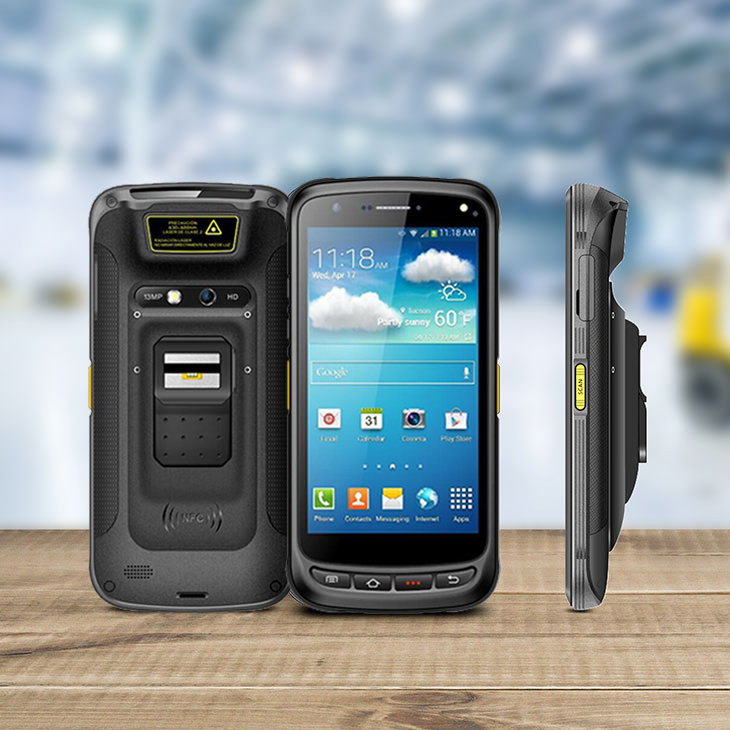

C71 Optical Fingerprint Scanner (Android 11/8.1)

Accurate Fingerprint Reading, Reliable Identity Verification

Chainway C71 is an Android rugged mobile computer, built with optical fingerprint sensor CBM-E3. It is FIPS 201 compliant, and enables secure data encryption and fake finger detection. With its powerful Octa-core processor and wireless connections such as 4G, Bluetooth and Wi-Fi, fingerprint scanner, barcoding and NFC, you can find this easy-to-deploy device an exceptionally valuable helper to increase working efficiency and productivity. C71 with abundant functions can best satisfy your different industrial needs.

C71 Optical Fingerprint Scanner (Android 11/8.1)

Accurate Fingerprint Reading, Reliable Identity Verification

Features

Android 11/8.1	Cortex-A53 Octa-core 2.3/2.5 GHz
5.2” IPS 1080P Screen	5000mAh Powerful Battery
1.8m Drop Proof	IP65 Sealing
4G/WiFi/Bluetooth

Functions

Fingerprint Scanning	NFC
13MP Autofocus Camera	Barcode Scanning
Accurate GPS

Specifications

Physical Characteristics

Dimensions	164.278.817.5mm/6.463.100.69in; ( the thickest: 31.5mm/1.24in)
Weight	＜314g/11.08oz
Display	5.2” IPS LTPS 1920x1080P
Touch Panel	Corning Gorilla Glass 3, multi-touch panel, gloves and wet hands supported
Power	Main battery: Li-ion, rechargeable, 5000mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)
Notification	Sound, LED indicator, vibrator
Expansion Slot	1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces	USB 2.0 Type-C, OTG, Type-C headphones supported
Audio	2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad	4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors	Light sensor, proximity sensor, gravity sensor

Communication

WLAN	IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN	Android 8.1: WWAN (China): 2G: 900/1800MHz 3G: WCDMA: B1,B8 CDMA2000 EVDO: BC0 TD-SCDMA: B34,B39 4G: B1,B3,B5,B8,B34,B38,B39,B40,B41 WWAN (Europe): 2G: 850/900/1800/1900 MHz 3G: B1/B2/B4/B5/B8 4G: B1/B3/B5/B7/B8/B20/B40 WWAN(America): 2G: 850/900/1800/1900 MHz 3G: B1/B2/B4/B5/B8 4G: B2/B4/B7/B12/B17/B25/B66 Android 11.0: 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A B28B/B34/B38/B39/B40/B41
WWAN (Others)	Depending on the country’s ISP
Bluetooth	Android 8.1：Bluetooth v2.1+EDR,3.0+HS,v4.1+HS Android 11.0：Bluetooth 5.0
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna

Developing Environment

Operating System	Android 8.1; GMS, FOTA, Soti MobiControl, SafeUEM supported Android 11.0; GMS, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
SDK	Chainway Development Kit (based on Morpho SDK)
Language	Java
Tool	Eclipse / Android Studio

Performance

CPU	Cortex-A53 2.5 / 2.3 GHz Octa-core
RAM+ROM	3GB + 32GB 4GB + 64GB (optional)
Expansion	Supports up to 128 GB Micro SD card

User Environment

Operating Temp.	4°F to 122°F / -20°C to 50°C
Storage Temp.	-40°F to 158°F / -40°C to 70°C
Humidity	5%RH – 95%RH non condensing
Drop Specification	Multiple 1.8 m / 5.9 ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification	1000 x 0.5 m / 1.64 ft falls at room temperature
Sealing	IP65 dependent
ESD	±15 KV air discharge, ±6 KV conductive discharge

Barcode Scanning

1D Linear Scanner	Zebra: SE965; Honeywell: N4313
2D Imager Scanner	Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
