R5 Wearable RFID Reader
Robust RFID Reading and Writing
Chainway R5 is a newly-developed wearable UHF reader. Equipped with embedded Impinj E710 / R2000, it enables read distance of over 9m. It allows user information interaction via Bluetooth coordinated with APP or SDK. And it also can be paired with Android/IOS device to expand RFID capability. This RFID reader can be suitable for warehousing, power inspection, asset management, retail, etc., which provides users with more flexibility to efficiently finish their tasks at hand.
R5 Wearable RFID Reader
Robust RFID Reading and Writing
Chainway R5 is a newly-developed wearable UHF reader. Equipped with embedded Impinj E710 / R2000, it enables read distance of over 9m. It allows user information interaction via Bluetooth coordinated with APP or SDK. And it also can be paired with Android/IOS device to expand RFID capability. This RFID reader can be suitable for warehousing, power inspection, asset management, retail, etc., which provides users with more flexibility to efficiently finish their tasks at hand.
Bring the High Level of Flexibility to Users
Features
 Wearable and Detachable |  SDK: Support Android/iOS |
 2000mAh Removable Battery |
Functions
 UHF RFID (Impinj E710/R2000 Chip) |  Bluetooth 4.0, BLE |
Specifications
Physical Characteristics
| Dimensions | 108 mm × 78 mm × 18 mm |
| Weight | 200 g / 7.05 oz. |
| Battery | 2000 mAh (removable) |
| Keypad | ON/OFF, SCAN |
| Indicator LED | Red indicator will be ON when charging Green indicator will be ON when device has been fully charged Blue indicator will be ON when battery is higher than 20% Blue indicator will flash when battery is lower than 20% Bluetooth is not paired when bluetooth indicator is OFF Bluetooth is paired when bluetooth indicator is ON |
| Port | USB Type C |
| Charging Current | 5 V / 1.5 A |
| Charging Duration | 2 hours |
Communication
| Bluetooth | Bluetooth 4.0 |
| USB Type C | USB connection to realize data transfer |
Developing Environment
| SDK | Android / IOS SDK Supported |
| Security | RFID Encrypted Module (Reserve) |
User Environment
| Operating Temp. | -20 °C to +50 °C |
| Storage Temp. | -40 °C to +70 °C |
| Humidity | 5% RH – 95% RH non condensing |
| Drop Specification | 1.2 m dropping on concrete |
| Sealing | IP65 |
UHF RFID
| Engine | CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000 |
| Frequency | 920-925 MHz / 902-928 MHz / 865-868 MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular Polarized Antenna (3dBic) |
| Power | 1W (30dBm, support +5~+30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.) |
| Fastest Read Rate | 900+ tags/sec |
| R/W ranges | Up to 9 m (open outdoors, Impinj MR6 tag) |
| Note | *Ranges and rates depend on tags and environment |
Optional accessories
| Accessories | Wrist strap, arm strap, magnetic handle |
Support & Downloads
Documents & Manuals
Videos
Accessories
Adapter (CN)
PWR-R5-5V2A-CN
Adapter (EU)
PWR-R5-5V2A-EU
Adapter (UK)
PWR-R5-5V2A-UK
Adapter (US)
PWR-R5-5V2A-US
USB Cable
DC-BK-TypeC
2000mAh Li-ion Battery
BTRY-R5-20MA
Wrist Strap (Optional)
RB-R5-WS

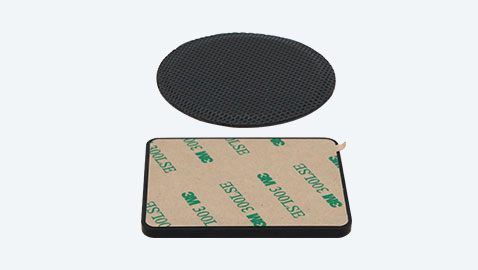

Magnetic Pad (Optional)
RB-R5-MS
Charging Cradles & Adapters (Optional)
CRD-R5-MBC
